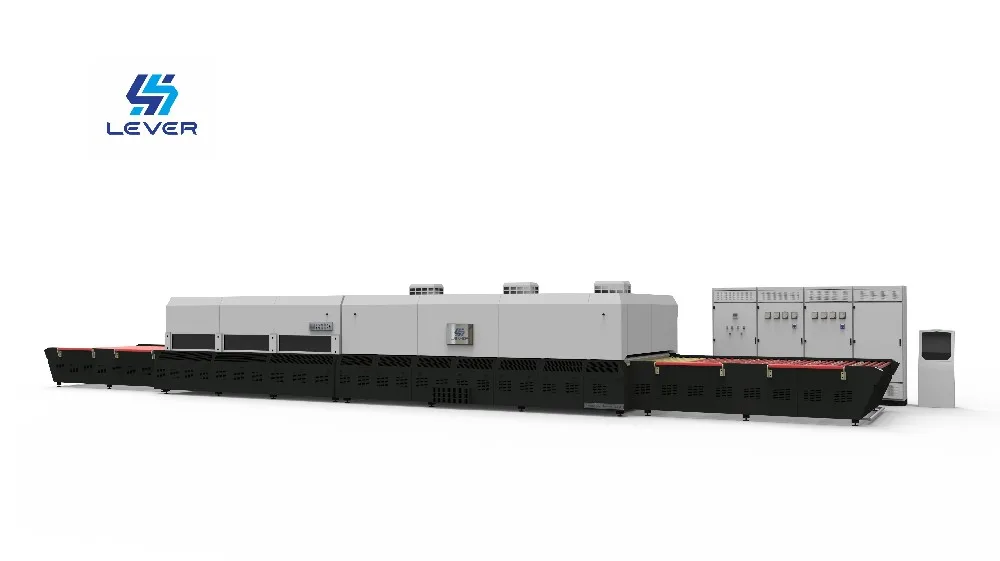

Flat Glass Tempering Furnace Tempered glass making machinery

Flat Glass Tempering Furnace Tempered glass making machinery
Send Inquiry
Product Code : 01
Brand Name : Lever
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets,
  • Price
  • 200000 USD ($)
  • Price Range
  • 180000.00 - 240000.00 USD ($)
Product Specifications
  • Height
  • 2740 Millimeter (mm)
  • Width
  • 2500 Millimeter (mm)
  • Length
  • 18406 Millimeter (mm)
  • Weight
  • 30000 Kilograms (kg)
  • Condition
  • New
  • Power
  • 560 Watt (w)
  • Voltage
  • 380 Volt (v)
  • Dimensions
  • 18406 * 2740 * 2500 Millimeter (mm)
Product Description


Flat Glass Tempering Furnace Tempered safety glass making machinery



Product Application

For producing flat tempered glass and thermal strengthened glass, which mainly used in the fields of architecture (doors, windows), shower room, household appliance, garden fence, elevator, furniture, and solar energy industries etc.

Quick Details

Warranty:

1 Year

Machine Type:

Glass Tempering Furnace

Production Capacity:

98%

Power(W):

560KW

Certification:

CE

After-sales Service Provided:

Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Applicable Industries:

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Construction works , Energy & Mining

Condition:

New

Place of Origin:

Henan, China (Mainland)

Brand Name:

Lever

Voltage:

380V

Dimension(L*W*H):

18406 * 2740 * 2500mm

Weight:

30000KGS

Glass Application:

Architecture, Furniture, Automobile, Household Appliance etc

Max. loading glass size:

2440*3660mm

Min. loading size:

150*250mm

Glass thickness:

4-19mm

PLC:

Siemens

Heating Method:

Forced convection

Glass can be temperd:

Low-E glass,clear glass,tinted glass,pattern ,screen printed glass

Packing standard:

sea worthy package or wooden cases









Main Features

1) Heating section has a helix matrix structure, which can control the temperature of each area independently.

2) Reasonable design and unique structure of heating elements make a long serve life.

3) The heating oven body is full closed and the Insulating materials are of high quality material with top performance which can ensure very lower energy consumption.

4) Fault diagnosis system for the heating elements.
5) We use only two connecting communication between the thermocouples and computer, which will avoid the interruption and make the temperature-measuring more exact.
6) The working condition of every thermocouple could be monitored automatically, and the warning will come out if there is any abnormal situation.
7) Adopting PID for temperature control, which has the better anti-interference function and higher temperature-control precision.
8) Equal three phase power consumption during automatic heating up period; avoiding phase no-equal during no-heating period automatically.
9) The fine-adjustment for oven temperature could be achieved by fine-adjusting the temperature of every heating element.
10) During the night, the furnace can stay at sleep mode around 500-550 degrees centigrade and preheating takes place before the start of the shift in the morning so that the furnace is ready for production
11) The production process, temperature, time, air pressure, etc could be recorded. Therefore, testing production could be saved and production stability could be improved. Also, the production state in different batches could be tracked.
The machine has the history record and printing function. When glass come out from the oven, the computer will record the control parameters automatically for reference in future or pint them out.
12) Powerful operation prompt facility; if there is any wrong operation or fault, the dialog box will be called out to give you help.
