Mould Bending Glass Tempering Furnace For Car Backlites with Double curvature

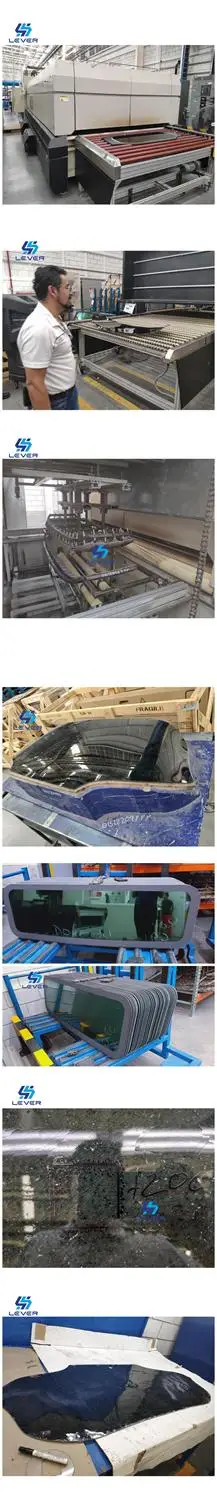

Automotive Back Glass Double Curvature  Glass Tempering Furnace, or called Mould Bent Glass Tempering Machine is a special plant used to produce the bent tempered glass with multi curvature, which mainly used in the fields of rear doors and side doors of automotives (the side door also is multi curvature), trucks, furniture, etc. Our customer produced the side doors for BMW, Audi, Toyota, Honda, Hyundai, Peugeot, etc.

Production Capacity:

98%

Power(W):

400KW

Certification:

CE

After-sales Service Provided:

Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Applicable Industries:

Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining

Condition:

New

Place of Origin:

Henan, China (Mainland)

Brand Name:

Lever

Voltage:

380V

Dimension(L*W*H):

19390*6007*3300mm

Weight:

35000KGS

Application:

Automobile rear double curvature glass

Glass Thickness:

3.5-6mm

Glass can be tempered:

clear glass,tinted glass,pattern ,screen printed glass

Installed Power:

500KVA

Heating method:

Radiation

Min. Glass size:

200mm*300mm

Max Glass size:

1600mm*800mm

Services:

Online support, Field installation, commissioning and training

Products:

Safety qualified car tempered glass

bending way:

latest Mold bending

2.Main Technical Features:
Loading Table:
Heating Section:

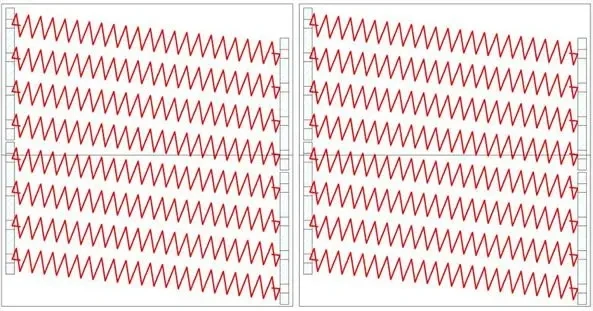

2. Sectional heating, individual heating zones for each working position.
There are ceramic plates to divide the different heating zones,
3. There are ceramic plates at the top of oven, which could ensure more even heating, avoid dregs falling. But the cost is higher and has higher requirements on the installation.
4 The ceramic rollers system is driven by triple belts, which can ensure better simultaneous and stable running, and avoid the scratch and destroy of glass when above the rollers. It would not affect the running when any one of belt damaged. The design as below picture:

5. Using ceramic support for heating elements, which could avoid earth to avoid heater trouble

Quenching Section:

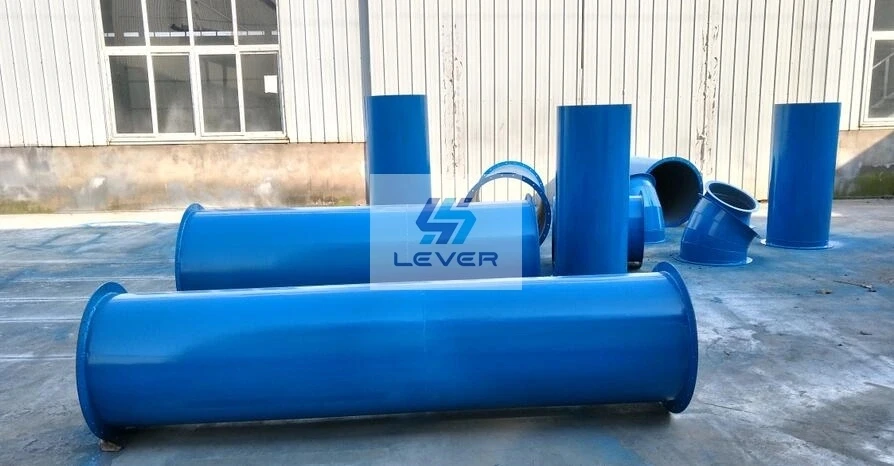

2. Round type air ducts, stronger air pressure, less air loss, lower energy consumption

Control System:
2. Network data for servo motor control mode: Profinet, compared with traditional wiring-connection, this mode could reduce disturbance
