Nylon vacuum bagging film for Laminated Glass

Nylon vacuum bagging film for Laminated Glass
Send Inquiry
Product Code : 3921909090
Brand Name : leverglass
Price And Quantity
  • Minimum Order Quantity
  • 300 Meter
  • Price
  • 2.00 USD ($)
Product Description


Vacuum Bagging film with high temperature for laminated glass


Quick Details

Production Capacity:

98%

Power(W):

10w

After-sales Service Provided:

Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Applicable Industries:

Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works

Condition:

New

Place of Origin:

Henan, China (Mainland)

Brand Name:

Lever

Product name:

laminated glass vacuuming film

Usage:

vacuuming

Color:

Blue

Material:

Nylon complicated



















Vacuum Bagging film with high temperature for laminated glass

Vacuum Bag Film for PVB Laminated Glass Processing



1. Standard size of vaccum film for option:

Specification (Width x Length) Unit
1 1650mm x 250m One roll
2 2100mm x 250m One roll
3 2300mm x 250m One roll
4 2500mm x 250m One roll
5 2700mm x 250m One roll
6 3000mm x 200m One roll



2. Instruction:

  • 3. Brief introduction for vacuuming process:
    • Let's take a brief introduction for the vacuum film to make laminated glass.
    • When processing curved tempered glass or hot-bending glass laminating, it is often impossible to perform normal rolling processing due to the arc length or high arch height of the glass. And when laminating the DuPont SGP explosion-proof film, Most manufacturers use a glass with a vacuum strip around a circle, put it into the drying box and vacuum it, then enter the autoclave.
    • Since the vacuum belt only surrounds the glass one circle, it is not completely sealed, so the product quality problem often occurs, the equipment and process input of the drying box are increased, and the cost is high and the efficiency is low.
    • In addition, when processing the patterned glass, glass surface is wavy or other uneven shape, so that the vacuum strip cannot seal the glass at all and cannot be processed.

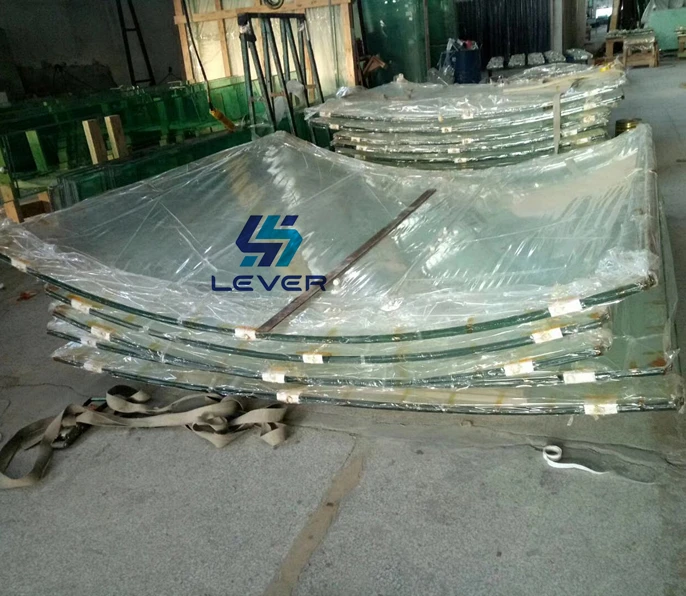

    • Our solution is to completely seal the glass with a vacuum bag and directly into the autoclave for vacuuming and form once. It has the characteristics of high yield, high efficiency and easy to learn. At the same time, this method is also suitable for making super large and wide laminated glass.

    Vacuum Bag Film for PVB Laminated Glass ProcessingVacuum Bag Film for PVB Laminated Glass Processing

Trade Information
  • Payment Terms
  • Western Union, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Cash in Advance (CID)
  • Supply Ability
  • 10000000000 Meter Per Month
  • Delivery Time
  • 10 Days
  • Sample Policy
  • Free samples are available
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
