Vacuum bagging film for laminated glass

Vacuum bagging film for laminated glass
Vacuum bagging film for laminated glass
Send Inquiry
Product Code : 847590
Brand Name : Lever
Price And Quantity
  • Minimum Order Quantity
  • 1 Roll
  • Unit of Measure
  • Roll/Rolls
  • Price
  • 2.00 USD ($)
  • Price Range
Product Description

Detailed Product Description

Vacuuming Bagging film with high temperature for laminated glass

Standard size of vacuum film for option:

Specification (Width x Length)

Unit

1650mm x 250m

One roll

2100mm x 250m

One roll

2300mm x 250m

One roll

2500mm x 250m

One roll

2700mm x 250m

One roll

3000mm x 200m

One roll

Instruction:

Brief introduction for vacuuming process:
  • Let's take a brief introduction for the vacuum film to make laminated glass.
  • When processing curved tempered glass or hot-bending glass laminating, it is often impossible to perform normal rolling processing due to the arc length or high arch height of the glass. And when laminating the  SGP explosion-proof film, Most manufacturers use a glass with a vacuum strip around a circle, put it into the drying box and vacuum it, then enter the autoclave.
  • Since the vacuum belt only surrounds the glass one circle, it is not completely sealed, so the product quality problem often occurs, the equipment and process input of the drying box are increased, and the cost is high and the efficiency is low.
  • In addition, when processing the patterned glass, glass surface is wavy or other uneven shape, so that the vacuum strip cannot seal the glass at all and cannot be processed.

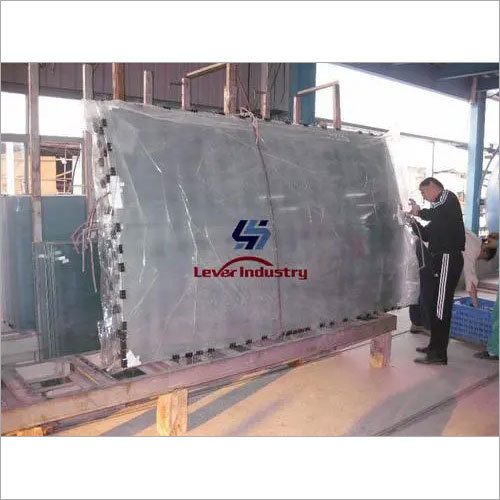

  • Our solution is to completely seal the glass with a vacuum bag and directly into the autoclave for vacuuming and form once. It has the characteristics of high yield, high efficiency and easy to learn. At the same time, this method is also suitable for making super large and wide laminated glass.


Trade Information
  • Supply Ability
  • 100000ROLLS Per Week
  • Delivery Time
  • 10 Days
  • Packaging Details
  • CARTON
  • Main Domestic Market
  • All India
  • Certifications
  • CE
